The GFED is a small air separation plant that produces liquid oxygen and liquid nitrogen by cryogenic distillation of cryogenic air. Capacities range from 4 to 7 metric tons per day.

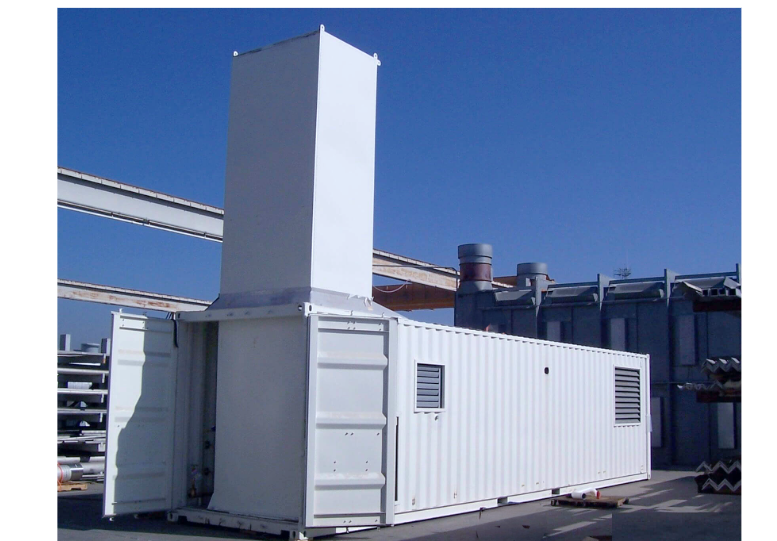

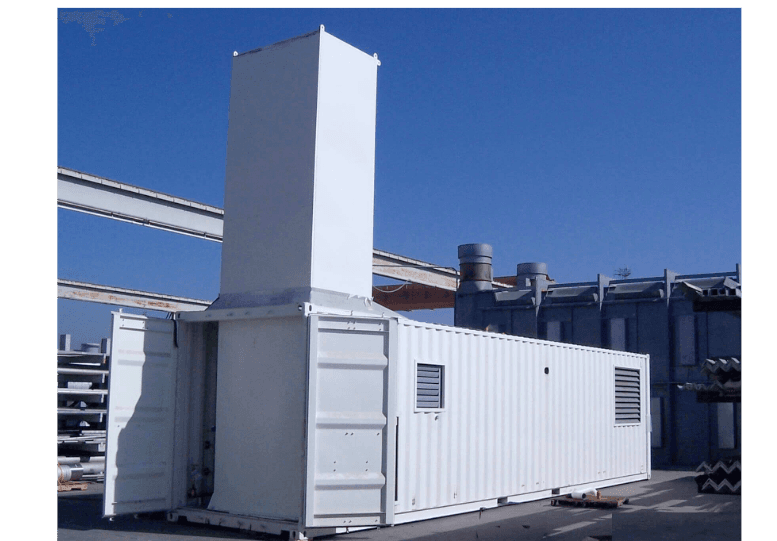

The GFED is designed to minimize shipping and allow for rapid installation by providing the plant in three distinct pre-piped and pre-wired modules: the main air compressor, the warm end module and the cold box.

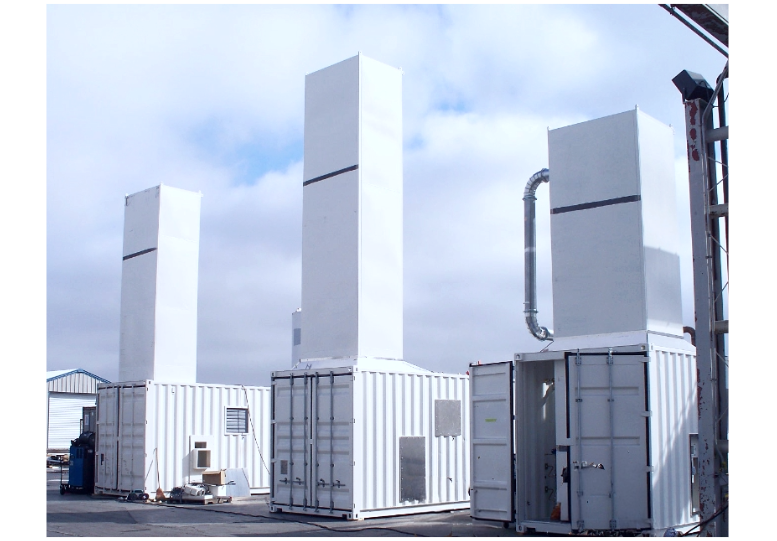

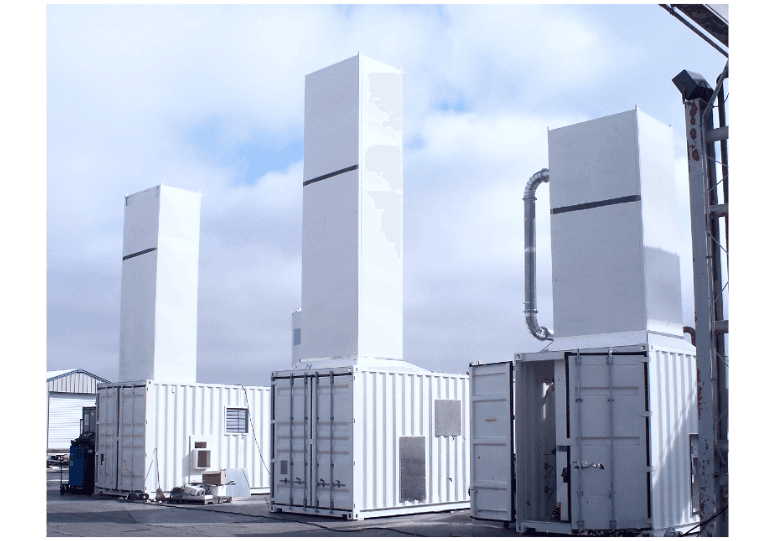

Over 50 GFED plants are currently producing liquid oxygen and nitrogen for medical, industrial, oil field and military applications in some of the most remote regions of the world.
Downloads
GFED series brochure
Portability and installation cost

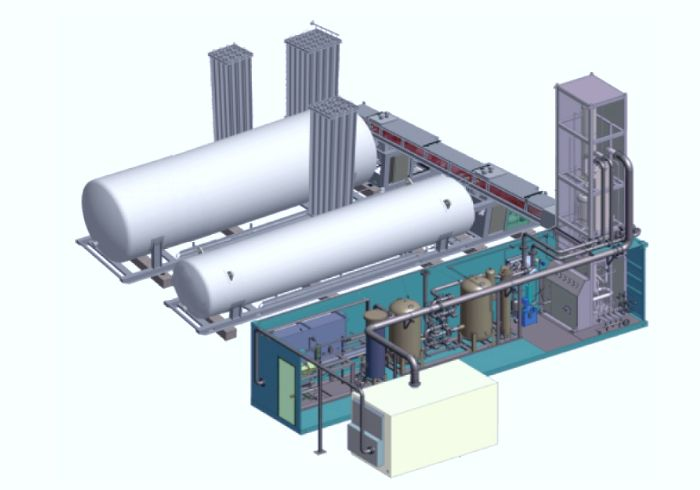

GFED options - tank farm
Features
and benefits
All of the machinery is designed to be air-cooled so a source of low voltage power is the only required utility. The plant systems are self-contained and can be completely installed outdoors, requiring only a simple foundation.
Efficient, reliable oil free; centrifugal or dry screw air compressor
Proven TSA air pre-purification system
Choice of 50 or 60 Hz power systems
Ships as two standard ISO containers to minimize transportation expense
Complete with all interconnecting piping and electrical systems, ready for installation
CE compliance
Fully automatic digital process-control system with “touch-screen” operator interface
Air cooled, evaporative water cooled or dry glycol cooling tower cooled
Integrated cylinder filling system
Integrated product storage system
