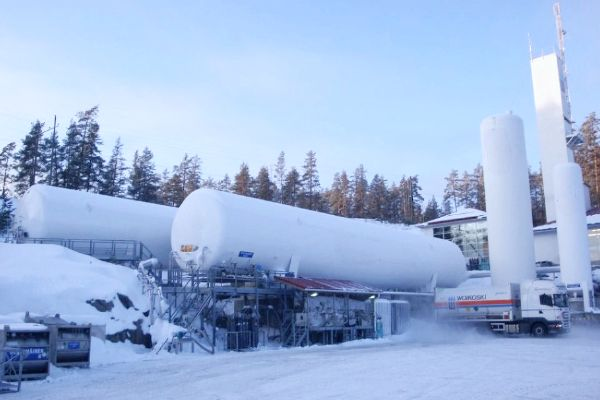

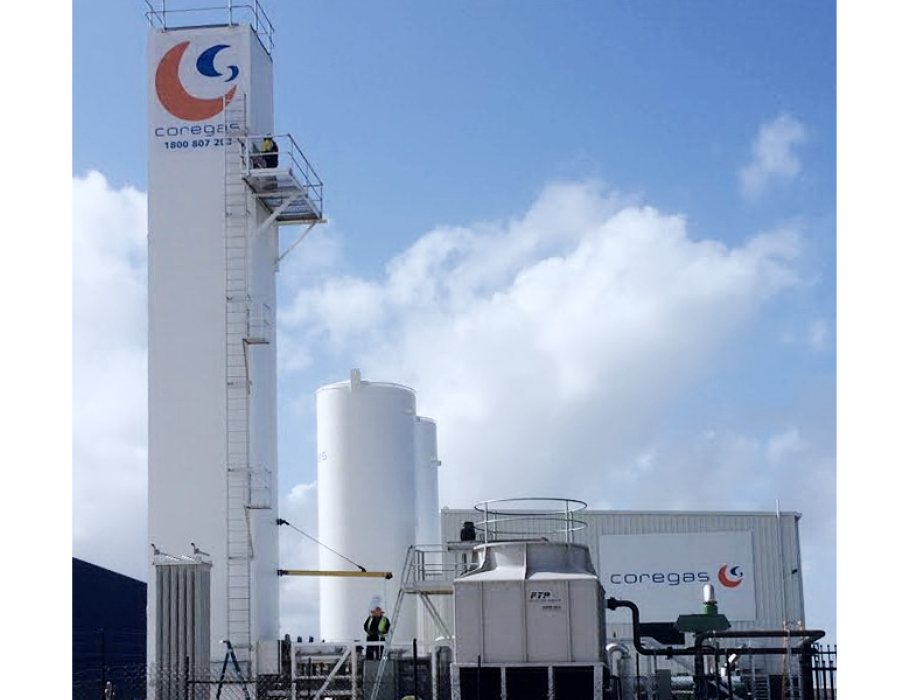

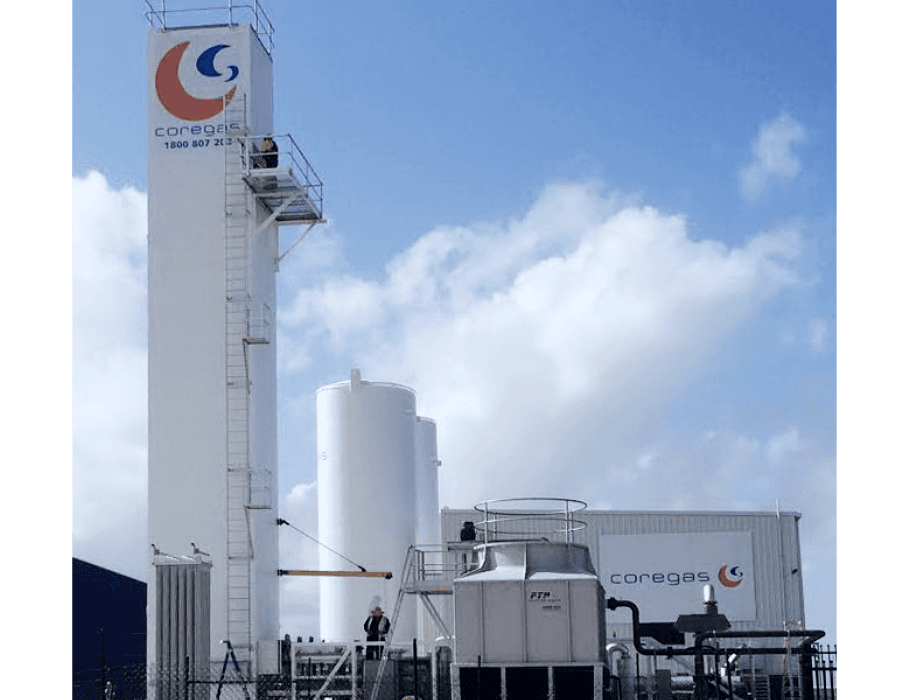

The ASPEN plant is a medium sized air separation plant designed to produce liquid nitrogen, oxygen and, as an option, liquid argon by cryogenic distillation of atmospheric air.
In addition, when operating in maximum oxygen mode, gaseous nitrogen is also available, if required, when there is a pipeline or other on-site nitrogen requirement or to liquefy for additional liquid nitrogen capacity.
The ASPEN plant is designed to minimize shipping and allow for rapid installation by providing the plant in four distinct modules: the main air compressor, the air treatment module, the recycle compressor, and the cold box. Capacities range from 15 to 35 metric tons per day.
Downloads
ASPEN series brochure
ASPEN lead time
Features
and benefits
The ASPEN plants are designed to meet the most severe operating conditions. Over 35 ASPEN plants have been deployed producing liquid oxygen, nitrogen and argon for medical, industrial, oil field and military applications in some of the most remote regions of the world.
High-performance ACD, roller element bearing Turboexpander with cartridge-stylerotating element for easy removal and installation.
Roller element bearings allow excellent loss-of-power protection for rundown, ideal for unreliable power supply.
Proven TSA air pre-purification system.
Efficient, reliable oil free centrifugal or dry screw compressors.
Choice of 50 or 60 Hz power systems.
Ships as three standard ISO containers to minimize transportation expense.
Complete with all interconnecting piping and electrical systems, ready for installation.
State-of-the-art control system designed to allow unattended night-shift operation enabling remote optimization, problem solving and remote start-up as well as unattended startup.
Cold box and warm end lighting included.
Siemens S7 PLC Fully automatic digital process-control system with PC Based HMI.
CE compliance
Factory cold performance Test
Dry Cooling towers
Integrated cylinder filling system
ISO container Control Room
Integrated product storage, high pressure pumping and transfer system
Air cooled, evaporative water cooled or dry glycol cooling tower cooled
